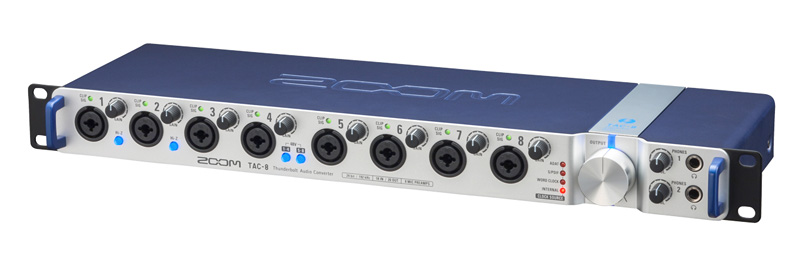

Zoom TAC-8 Thunderbolt Audio Interface

Zoom TAC-8 Thunderbolt Audio Interface

Achtkanaliger Thunderbolt Audio-Konverter mit bis zu 18 Ein- und 20 Ausgängen mit Thunderbolt-Hochgeschwindigkeits-Schnittstelle der neuesten Generation.

Features:

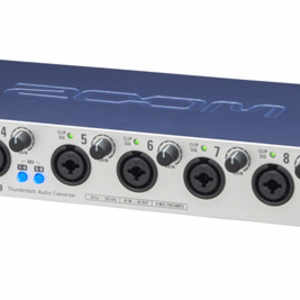

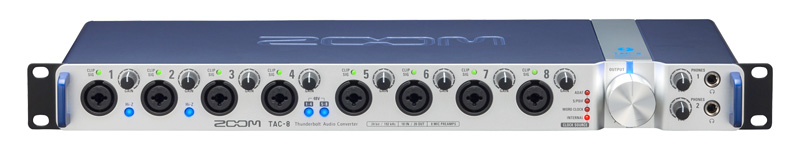

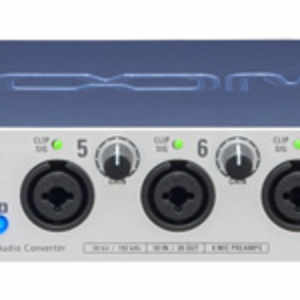

• ANALOG INPUTS INPUT 1-8: XLR/TRS combo jacks
• (XLR: 2 hot, TRS: TIP hot)
• Input gain: 0 to 60 dB (1dB steps)
• Input impedance: 5kΩ, 1MΩ (when Hi-Z on)
• Maximum input level: +13dBu (＠0dBFS / XLR), +21dBu (＠0dBFS / TRS)
• Phantom power: +48V

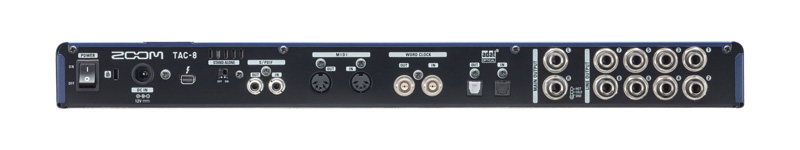

• ANALOG OUTPUTS MASTER L/R OUTPUT1～8: 1/4“ TRS phone jack (Balanced)
• Maximum output level: +14 dBu （＠0dBFS）
• Output impedance: 150Ω 　 　　
• PHONES 1/2: 1/4“ stereo phone jack
• 20mW + 20mW (into 32Ω load)
• Maximum output level: +10dBu （＠0dBFS）
• Output impedance: 33Ω
• DIGITAL IN/OUT
• ADAT OPTICAL: ADAT Optical (lightpipe)
• 8IN/8OUT @44.1kHz/48kHz
• 4IN/4OUT @88.2kHz/96kHz, S/MUX compatible
• 2IN/2OUT @176.4kHz/192kHz, S/MUX4 compatible
• S/PDIF:
• RCA (coaxial)
• Supported sampling frequencies: 44.1/48/88.2/96/176.4/192kHz

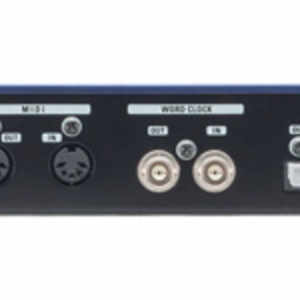

• WORD CLOCK:
• BNC
• Supported sampling frequencies： 44.1/48/88.2/96/176.4/192kHz
• Output Impedance: 75Ω
• Frequency characteristics:
• -1.0 dB: 20 Hz - 60 kHz （@192kHz）
• -1.0 dB: 20 Hz - 40 kHz （@96kHz）
• -1.0 dB: 20 Hz - 20 kHz （@44.1kHz）
• Input conversion noise: Measured EIN: 125 dB (IHF-A) @ 60dB, 150Ω input
• Dynamic range:
• A/D：　120dB typical （IHF-A）
• D/A：　120dB typical （IHF-A）
• Recording channels / Playback channels:
• At 44.1kHz and 48kHz sampling
• Recording: 18 channels (ANALOG: 8, S/PDIF: 2, ADAT: 8)
• Playback: 20 channels (ANALOG: 10, S/PDIF: 2, ADAT: 8)
• At 88.2kHz and 96kHz sampling
• Recording: 14 channels (ANALOG: 8, S/PDIF: 2, ADAT: 4)
• Playback: 16 channels (ANALOG: 10, S/PDIF: 2, ADAT: 4)
• At 176.4kHz and 192kHz sampling
• Recording: 12 channels (ANALOG: 8, S/PDIF: 2, ADAT: 2)
• Playback: 14 channels (ANALOG: 10, S/PDIF: 2, ADAT: 2)
• Sampling frequencies: 192kHz, 176.4kHz, 96kHz, 88.2kHz, 48kHz, 44.1kHz 　　
• Bit depth: 24 bit 　　
• Interface: Thunderbolt™ 　　
• MIDI: IN / OUT (5-pin DIN jacks) 　　
• Power supply: AC adapter： DC12V 2A　(AD-19) 　　
• Maße (TxBxH in mm): 157,7 x 482,6 x 46,0　　
• Gewicht: 2,01 kg 　　
• Included Accessories: AD-19 AC adapter, Operation manual, Steinberg Cubase LE software download
