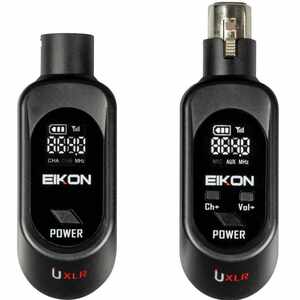

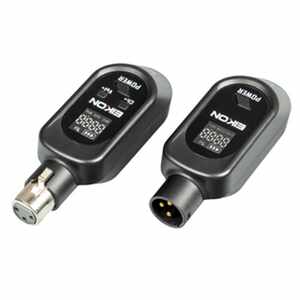

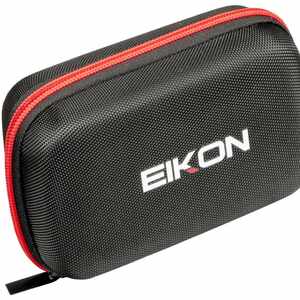

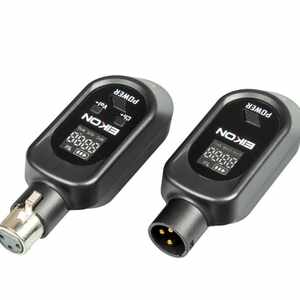

UHF-PLL-Drahtlos-Audiosystem zur Signalübertragung über XLR-Verbindungen, bestehend aus 3 Einheiten: XLR-Sender (weiblich), XLR-Empfänger (männlich) und USB-C-Ladekabel, sowie EVA-Schutzetui.
Doppelte Eingangsempfindlichkeit und Phantomspeisungs-Funktion.
Erhältlich in 2 Frequenzbändern: 863–865 MHz oder 568,500–580,100 MHz.
UXLR – UHF PLL Transmitter
RF Channels 16 or 30 frequency presets depending on band
RF Frequency Band UHF: 863-865 MHz or 568.500 – 580.100 MHz
RF Frequency Stability ±0.002%
RF Oscillation Mode PLL Synthesized
RF Modulation Type DQPSK
RF Output Power 10mW
Sub-harmonic < 40 dB
Operating current 130 mA
Operating Time 3 to 5 hrs
Operating Power Supply 3.7 V / 800 mA - built-in Lithium battery
Charging mode USB charging 5V – type C connector
Charging time 3 hours
Weight 0.10 Kg
UXLR – UHF PLL Receiver
RF Channels 16 or 30 frequency presets depending on band
RF Frequency Band UHF: 863-865 MHz or 568.500 – 580.100 MHz
RF Frequency Stability ±0.005%
RF Oscillation Mode PLL Synthesized
RF Modulation Type DQPSK
RF Receiving Sensitivity < -98 dBm
RF Receiving range Up to 30 meters
Audio dynamic range 106 dBm
THD Distortion < 0.5%
S/N Ratio 102 dBA
Operating current 85 mA
Operating Time 3 to 5 hrs
Operating Power Supply 3.7 V / 800 mA - built-in Lithium battery
