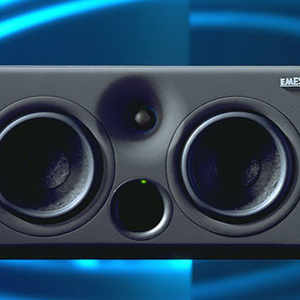

EMES Blue HR active Monitor

EMES Blue HR active Monitor

leistungsstarkes 2-Wege-Monitor-System von EMES mit 3 120 Watt Verstärkern, Carbon Woofer, Silk Doom Tweeter und diversen Steuerungsmöglichkeiten...

Features:

• 3 identical 120W amplifier
• eliminates time related distortion
• controlled damping
• CARBON Woofer
• 2 x 18cm CArbon/Paper membrane
• resonant free cone
• SILK DOME Tweeter
• 28mm silk dome
• Superior transient response
• 1000Hz X-Over FC
• Level control
• Sensitivity adjustable
• -40 to + 10dB
• Low-end control
• Corrects Low end from -6 to +4dB
• Room compensation
• Corner/Wall placement Eq
• High-end control
• Corrects High end from -4 to +4dB
• Room compensation
• Adjustable (Listening taste)

System:

• construction: 2 way bass-reflex
• concept: D'Appolito
• fc responce free field: 37 - 20.000 Hz +/- 2 dB
• fc responce in wall: 39 - 20.000 Hz +/- 1,5 dB
• system low fc responce: 35 Hz - 3 dB
• max. sensitivity: 114 dB
• max. sensitivity long term: 110 dB
• harmonic distortion at SPL <100Hz: 0,4 %
• harmonic distortion at SPL >100Hz: 0,28 %
• Bass driver: 2 x 18cm carbon
• Midrange driver: -
• Hf driver: 28mm Silk dome
• shielded (anti magnetic): no
• weight: 18,2 Kg
• dimensions w/h/d in mm: 480 x 250 x 300
• pair difference: +/- 0,5 dB

Electronic:

• number of amplifier: 3
• power handling rms Lf/Hf: 3 x 100 W
• power handling peak Lf/Hf: 3 x 120 W
• connector type: XLR (female)
• input impedance: 10 kOhm
• input sensitivity: 16 steps, from 0,45 - 4,5V
• X-over fc: 1,100 Hz
• low pass filter: 20 Hz / - 18dB
• Hf level control: 16 steps, from -4 dB - + 4 dB
• Lf gain control: 16 steps, from -6 dB - + 4 dB
• distortion at acoustic max. output: 0,1%
• signal to noise ration: -102 dB
• kind of power supply: analog
• operating voltage: 115/230 V +/- 20%
• power consumtion at max. output: 300 W
