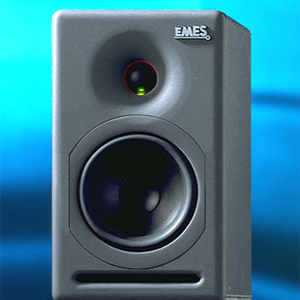

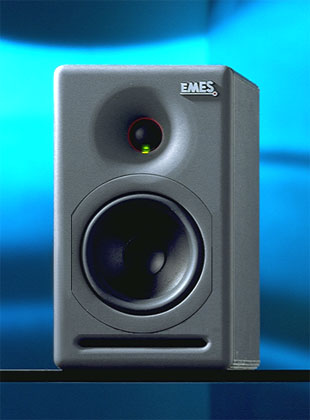

EMES Pink tv active Monitor

EMES Pink tv active Monitor

Der PINK tv aktive Monitor von EMES ist speziell für Studio-, Surround Sound- und High Quality Multimedia Anwendungen konzipiert. Ein sehr kompakter 2-Wege Monitor mit einer ausgezeichneten Stereo Wiedergabe. Fügt sich praktisch in jedes Setup problemlos ein...

Features:

• 2 identical 80W amplifier
• eliminates time related distortion
• molded waveguide baffel
• Lower X-Over FC
• Exponential coupling (Tweeter/Air)
• eliminates reflections,
• minimizes distortion
• linearize the phase response
• wide dispersion pattern
• digital "quick delivery" power supply
• cycles 2000 times faster
• hum canceling
• Tight and accurate Low End
• HDS Driver
• Fiberglas membrane
• Vented Coil System
• Extrem low compression
• Superior transient response
• Perfect coil cooling
• Level control
• Sensitivity adjustable
• -40 to + 10dB
• Low end control
• Corrects Low end from -6 to +4 dB
• Room compensation
• Corner/Wall placement Eq
• High end control
• Corrects High end from -4 to +4 dB
• Room compensation
• Adjustable (Listening taste)

System:

• construction: 2 way bass-reflex
• concept: One & One Monitor with Wave-guide
• fc responce free field: 68 - 20.000 Hz +/- 2 dB
• fc responce in wall: 68 - 20.000 Hz +/- 1,5 dB
• system low fc responce: 66 Hz - 3 dB
• max. sensitivity: 108 dB
• max. sensitivity long term: 106 dB
• harmonic distortion at SPL <100Hz: 0,8 %
• harmonic distortion at SPL >100Hz: 0,4 %
• Bass driver: 1 x 5" fibre composite
• Midrange driver -
• Hf driver: 25mm Neodymium
• shielded (anti magnetic): yes
• weight: 5,5 Kg
• dimensions w/h/d in mm: 170 x 290 x 200
• pair difference: +/- 0,5 dB

Electronic:

• number of amplifier: 2
• power handling rms Lf/Hf: 2 x 60 W
• power handling peak Lf/Hf: 2 x 80 W
• connector type: XLR (female)
• input impedance 10 kOhm
• input sensitivity: 16 steps, from 0,45 - 4,5V
• X-over fc: 1,500 Hz
• low pass filter: 35 Hz / - 18dB
• Hf level control: 16 steps, from -4 dB - + 4 dB
• Lf gain control: 16 steps, from -6 dB - + 4 dB
• distortion at acoustic max. output: 0,1%
• signal to noise ration: -102 dB
• kind of power supply:  digital
• operating voltage: 115/230 V +/- 20%
• power consumtion at max. output: 180 W
