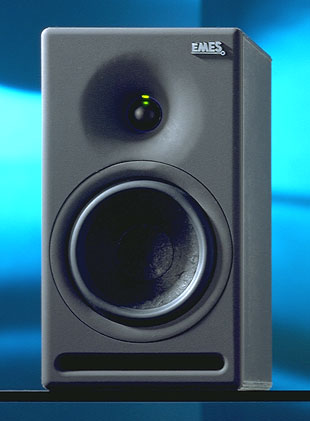

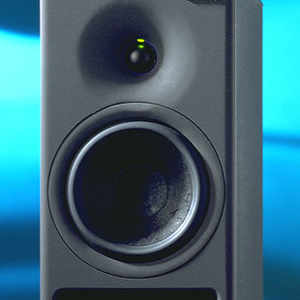

EMES Violett HR active Minitor

EMES Violett HR active Minitor

neuentwickelter, hochauflösender 2-Wege, Bass-Reflex Monitor. 2 x 120 Watt, Carbon Woofer, Digital "quick delivery" power supply, diverse Steuerungsmöglichkeiten...

Features:

• 2 identical 120W amplifier
  • eliminates time related distortion
• Digital "quick delivery" power supply
  • Cycles 2000 times faster
  • hum canceling
  • Tight and accurate Low End
• CARBON Woofer
  • 18cm Carbon/Paper membrane
  • Resonance free con
• SILK DOME NEODYMIUM Tweeter
  • 28mm Silk dome Neodymium
  • Superior transient response
• Level control
  • Sensitivity adjustable
  • -40 to + 10dB
• Low-end control
  • Corrects Low end from -6 to +4dB
  • Room compensation
  • Corner/Wall placement Eq
• High-end control
  • Corrects High end from -4 to +4dB
  • Room compensation
  • Adjustable (Listening taste)

System:

• construction: 2 way bass-reflex
• concept: One & One Monitor with Wave-guide
• fc responce free field: 48 - 20.000 Hz +/- 2 dB
• fc responce in wall: 50 - 20.000 Hz +/- 1,5 dB
• system low fc responce: 46 Hz - 3 dB
• max. sensitivity: 109 dB
• max. sensitivity long term: 106 dB
• harmonic distortion at SPL <100Hz: 0,8 %
• harmonic distortion at SPL >100Hz: 0,35 %
• Bass driver: 1 x 18cm, carbon
• Midrange driver: -
• Hf driver: 28mm Silk Dome Neodymium
• shielded (anti magnetic): no
• weight: 9,4 Kg
• dimensions w/h/d in mm: 210 x 380 x 250
• pair difference: +/- 0,5 dB

Electronic:

• number of amplifier: 2
• power handling rms Lf/Hf: 2 x 100 W
• power handling peak Lf/Hf: 2 x 120 W
• connector type: XLR (female)
• input impedance: 10 kOhm
• input sensitivity: 16 steps, from 0,45 - 4,5V
• X-over fc: 1,300 Hz
• low pass filter: 35 Hz / - 18dB
• Hf level control: 16 steps, from -4 dB - + 4 dB
• Lf gain control: 16 steps, from -6 dB - + 8dB
• distortion at acoustic max. output: 0,1%
• signal to noise ration: -106 dB
• kind of power supply:  digital
• operating voltage: 115/230 V +/- 20%
• power consumtion at max. output: 160 W
