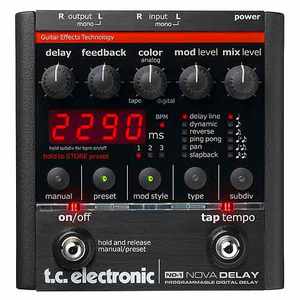

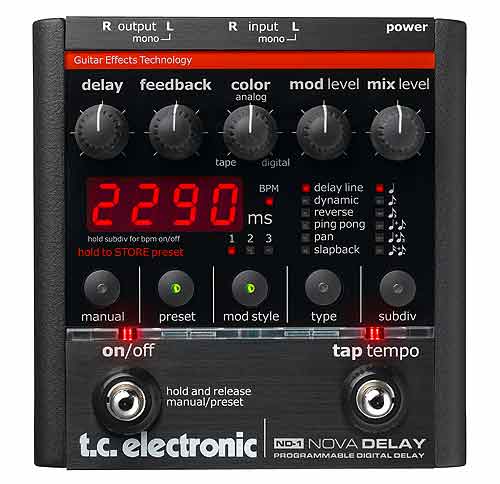

TC Electronic ND-1 Nova Delay

t.c. electronic Nova Delay ND-1

Digitales stereo Delay Pedal mit 9 User Presets, 6 Delay Typen (u.a.Dynamic und
Reverse Delay). Band - analog - digital Delay-Arten, Modulation auf allen Typen und
Arten, Tap Tempo und Audio Tapping.

Features:

• 6 studio quality digital delay types
• Two switchable settings: manual and preset
• 9 user programmable presets
• Up to 2290 ms delay time
• Audio Tapping™ - audio-generated tap tempo
• Modulated delay
• Delay spillover

technische Details:

• Analog Inputs:
  • Connectors: 1/4” phone jacks w. monosense
  • Impedance: 1 MOhm
  • Max. Input Level: TBD dBu
  • A to D Conversion: 24 bit, 128 x oversampling bitstream
  • A to D Delay: TBD
  • Dynamic Range: 105 dB typ, 20 Hz - 20 kHz
  • THD typ.: < 92 dB (0,0025 %) @ 1 kHz
  • Frequency Response: +0/-0.1 dB @ 48 kHz, 20 Hz to 20 kHz
  • Crosstalk: <-95 dB, 20 Hz to 20 kHz
• Analog Outputs:
  • Connectors: 1/4” phone jack, balanced
  • Impedance: Balanced / Unbalanced  40 Ohm
  • Max. Output Level: TBD dBu
  • D to A Conversion: 24 bit, 128 x oversampling bitstream
  • D to A Delay: TBD
  • Dynamic Range: 105 dB typ, 20 Hz to 20 kHz
  • THD typ: <-94 dB (0.002 %) @ 1 kHz, +20 dBu Output
  • Frequency Response: +0/-0.5 dB @ 48 kHz, 20 Hz to 20 kHz
  • Crosstalk: <-100 dB, 20 Hz to 20 kHz
• EMC:
  • Complies with: EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
• Enviroment:
  • Operating Temperature: 0° C to 50° C
  • Storage Temperature: -30° C to 70° C
  • Humidity: Max. 90 % non-condensing
• General:
  • Finish: Anodized aluminum front Plated and painted steel endcaps
  • Dimensions: 12,5 x 12,5 cm
  • Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select) AC wall adapter
  • Power Consumption: <5 W
  • Warranty Parts and labor: 1 year
